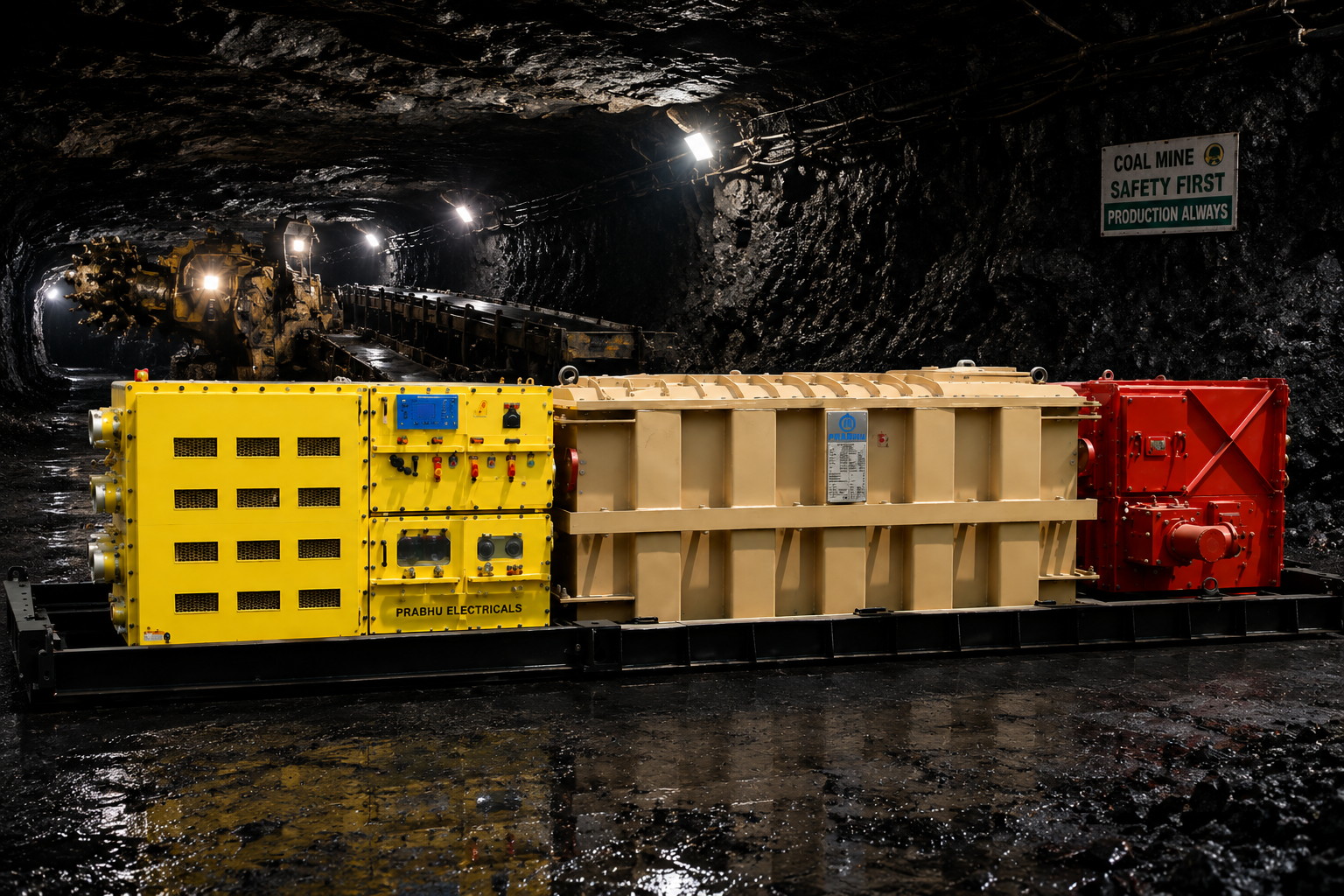

FLP LOAD CENTRE UPTO 2500KVA, PRIMARY UPTO 6.6kV SECONDARY UPTO 415-1140V
Designed for saving cost, cabling and space for feeding power to Continuous Mines package, Long wall package, and road header package etc.
- Low height to suit both Low & Standard U/G mines.
- Range upto 2500KVA, 3.3kV-6.6kV.
- Secondary dual 415V-1140V.
- Incoming VCB, intermediate with transformer and Outgoing upto 12 drives+ 2 for pump/fan.
- HMI interface with LED display for individual drives resulting in easy monitoring, control and program setting(SCADA).
- Operational control of the load centre can be done from Remote/ Surface through remote communication protocol(RS 485, FO Cables) Eg: Start, Stop, Setting parameters, etc.
- Corrugated tank for extra cooling of the Power transformer.
- Plug & Socket interchangeability between Machine IC side and Load Centre OG side.
- Continuous duty operational equipment enhancing productivity.

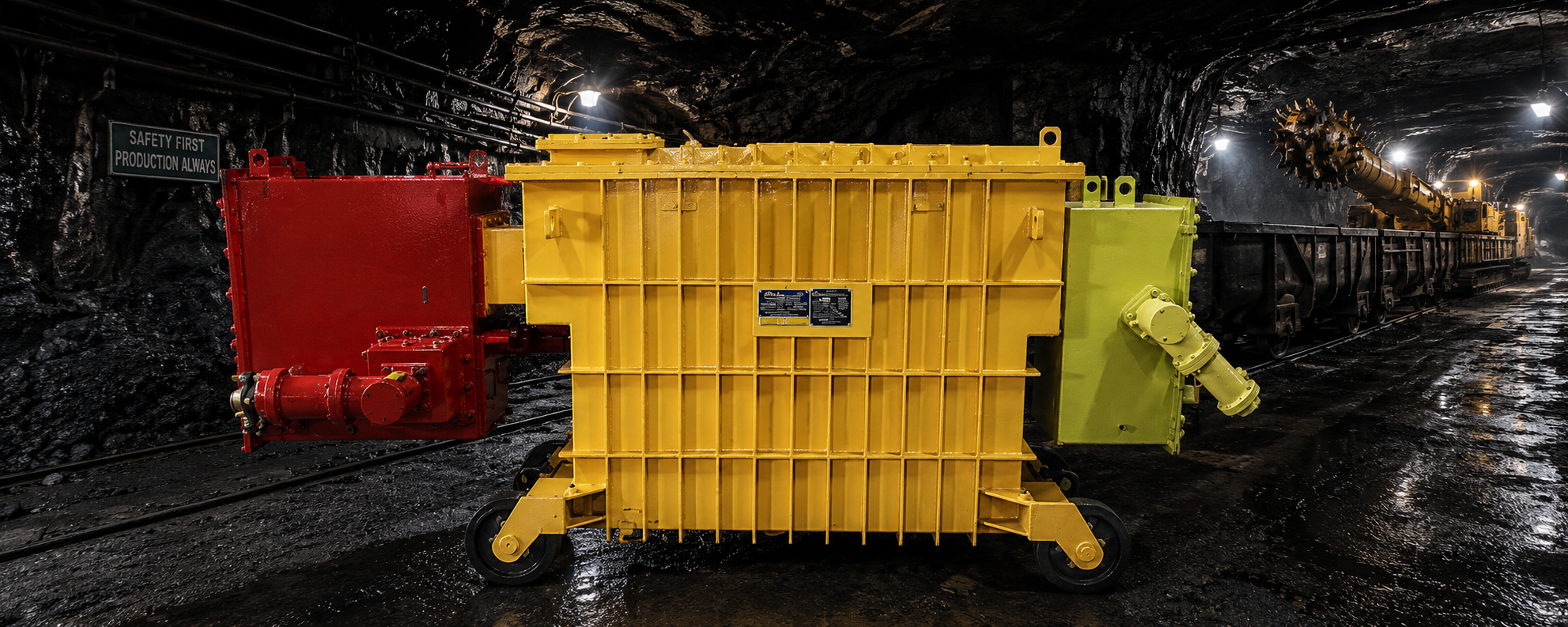

FLP TRANSWITCH UNIT RATED UPTO 1000 KVA, PRIMARY UPTO 6.6KV SECONDARY UPTO 1140V
Designed for safety and distribution of power to machines for varied applications in mining.
- Breaker panel on primary side.
- Protection chamber with LT panel on secondary side.
- Choice of protection.
- Can be moved easily from one place to another - Skid or wheel mounted.
- The top cover can be easily opened for maintenance of transformer.
- Multi purpose equipment.
- Plug & Sockets is provided to the HT & LT side.
- Simple structure and easy for installation and operation.

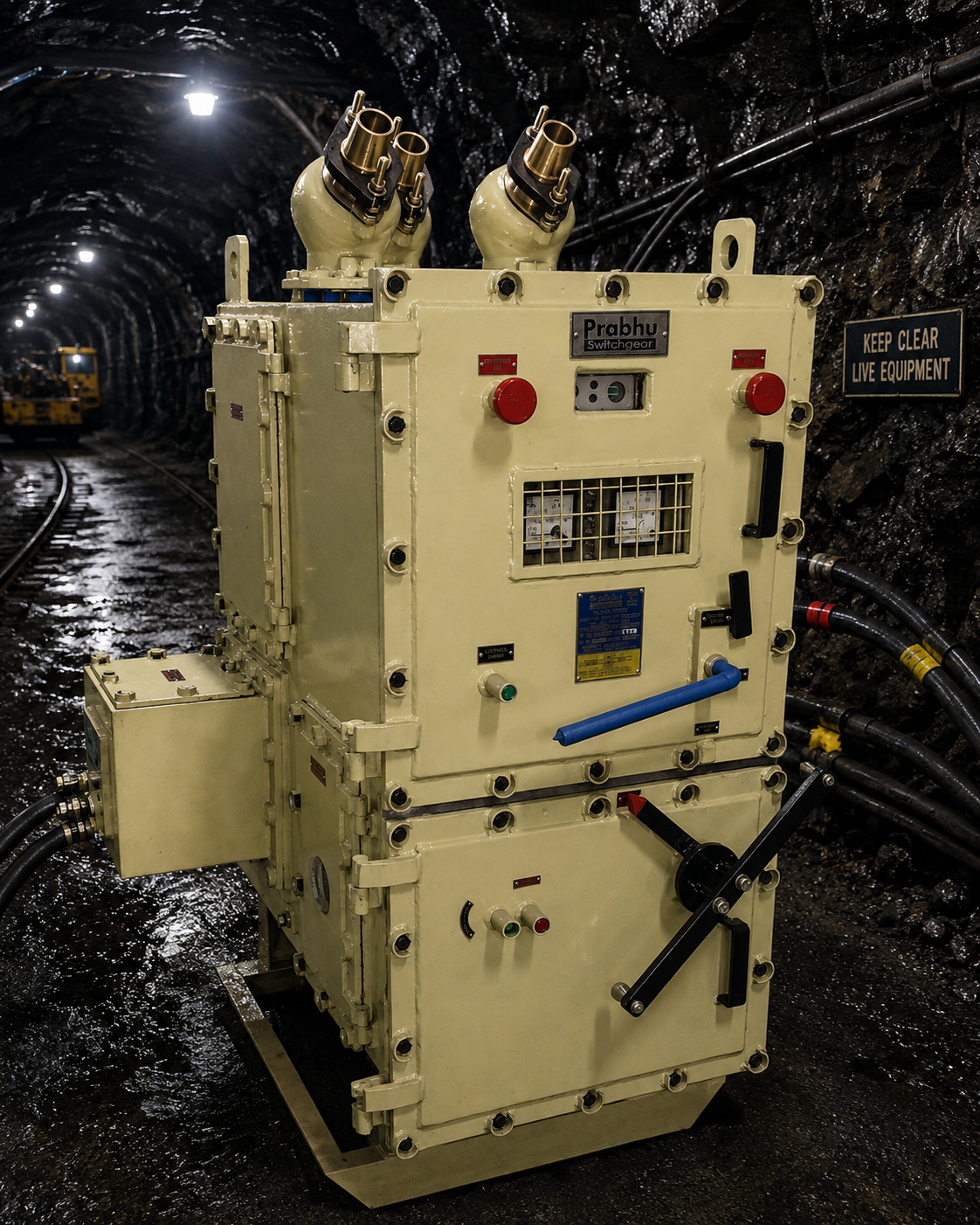

FLP VACUUM CIRCUIT BREAKER PANEL RATED UPTO 630AMPS VOLTAGE UPTO 7.2KV
Specially designed for exceptional performance against Overload and High short circuit.
- Panel is divided into two compartments.
- Upper compartment comprises of control circuit.
- Lower compartment comprises of vacuum circuit breaker.
- Easy draw out type VCB for maintenance of breaker.
- Incoming, through going and outgoing cable boxes provided.
- All the meters and protection as per customers requirement.
- Applications: Coal Mines.

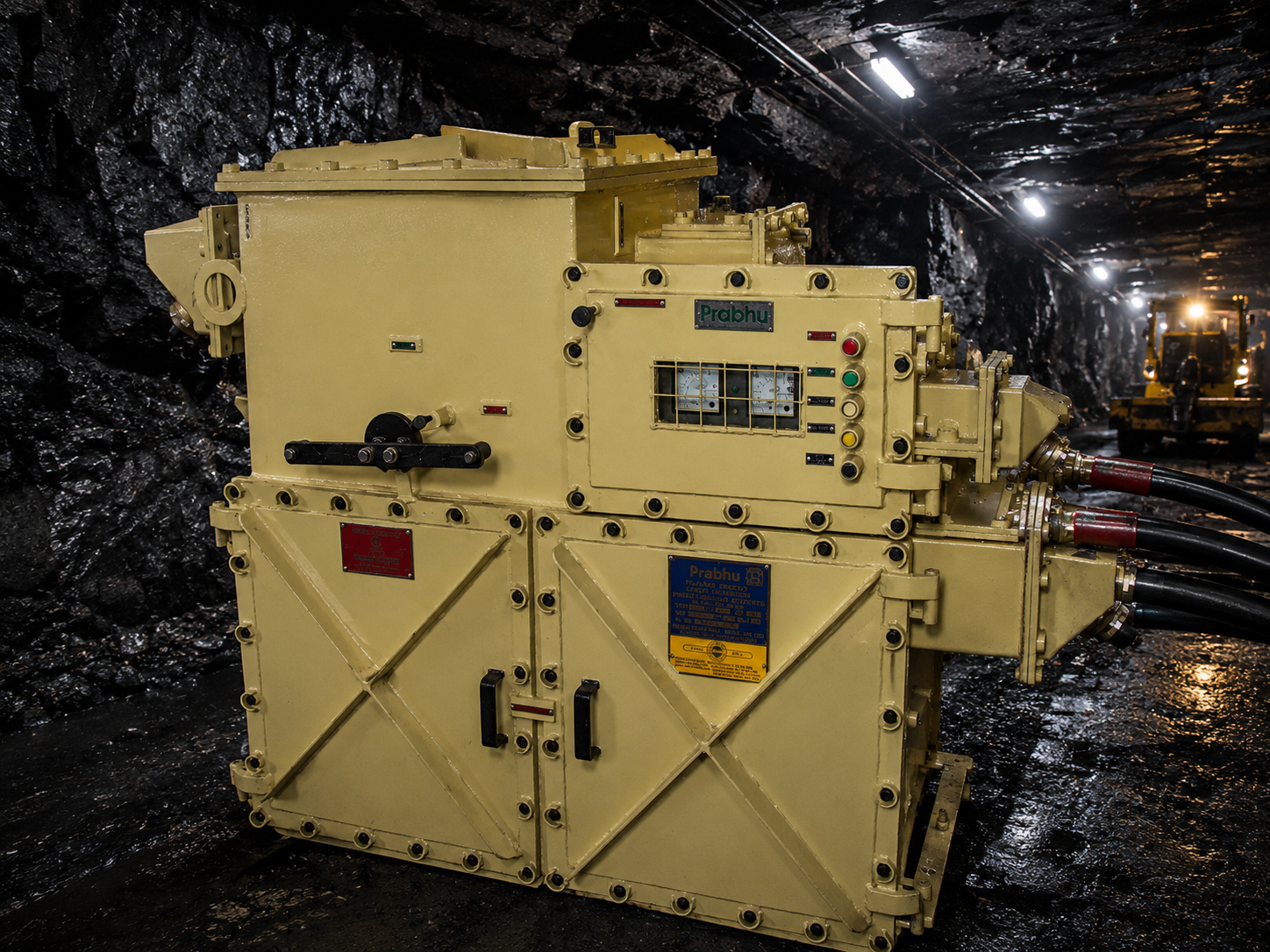

FLP H.T. STARTERS UPTO 400AMPS, 6.6KV
Specially designed to reduce the heavy starting current and provide various protections for motors.
- Skid mounted enclosures fabricated from thick steel plate conforming to latest IS/IEC 60079.
- Different compartments.
- Mechanically and electrically interlocked isolator.
- Cable termination and sealing boxes fitted with cable glands.
- Choice of protections.
- Suitable scaled measurement meters.
- Suitably scaled ammeter and voltmeter switch with indications on/off, trip on the front cover.

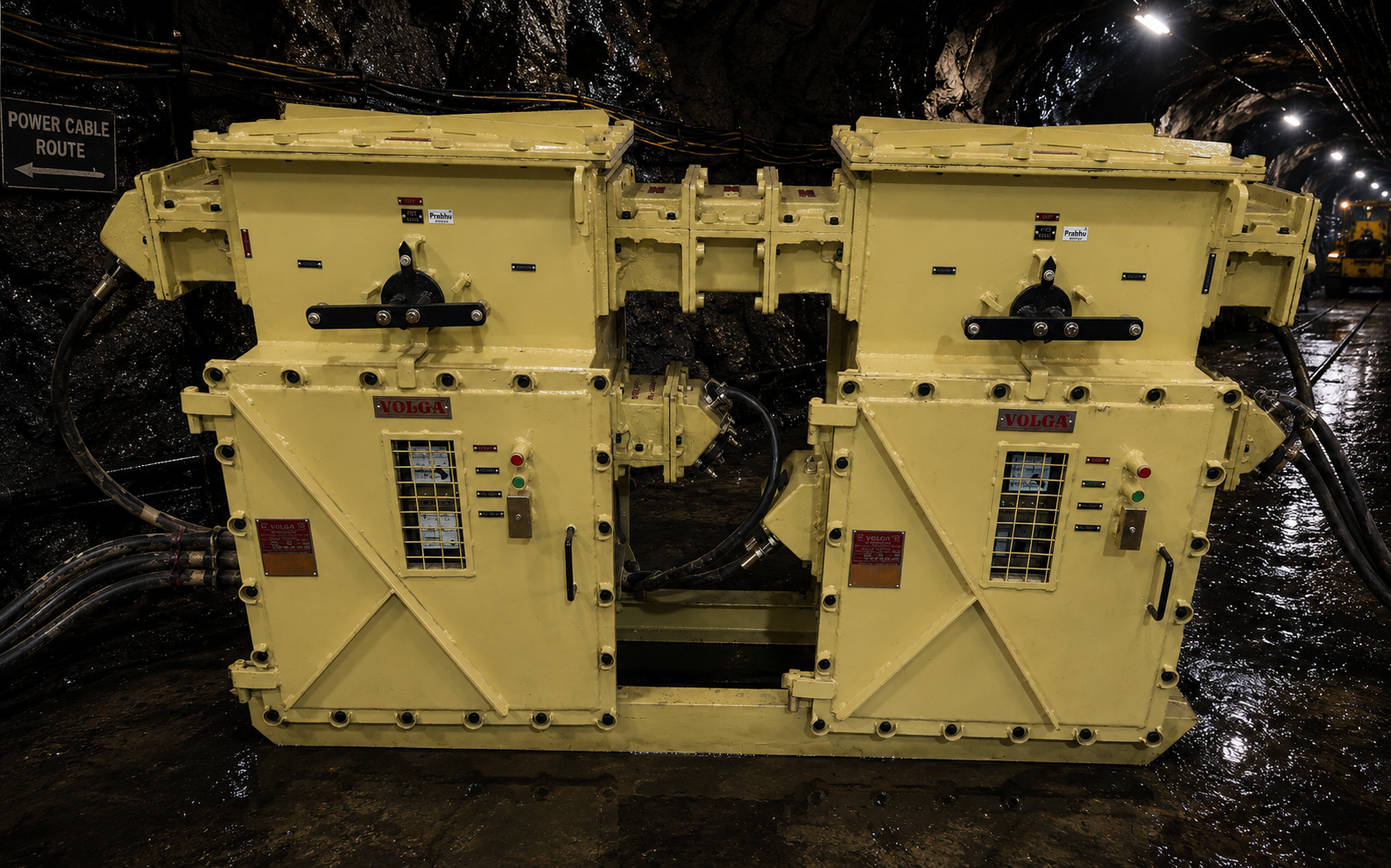

FLP L.T. STARTERS RATED UPTO 600AMPS, 550V
Specially designed for powering machines and provide various protections for motors.
- Skid mounted enclosures fabricated from thick steel plate conforming to latest IS/IEC 60079.
- Different compartments.
- Mechanically and electrically interlocked isolator.
- Cable termination and sealing boxes fitted with cable glands.
- Choice of protections.
- Suitable scaled measurement meters.
- Suitably scaled ammeter and voltmeter switch with indications on/off, trip on the front cover.

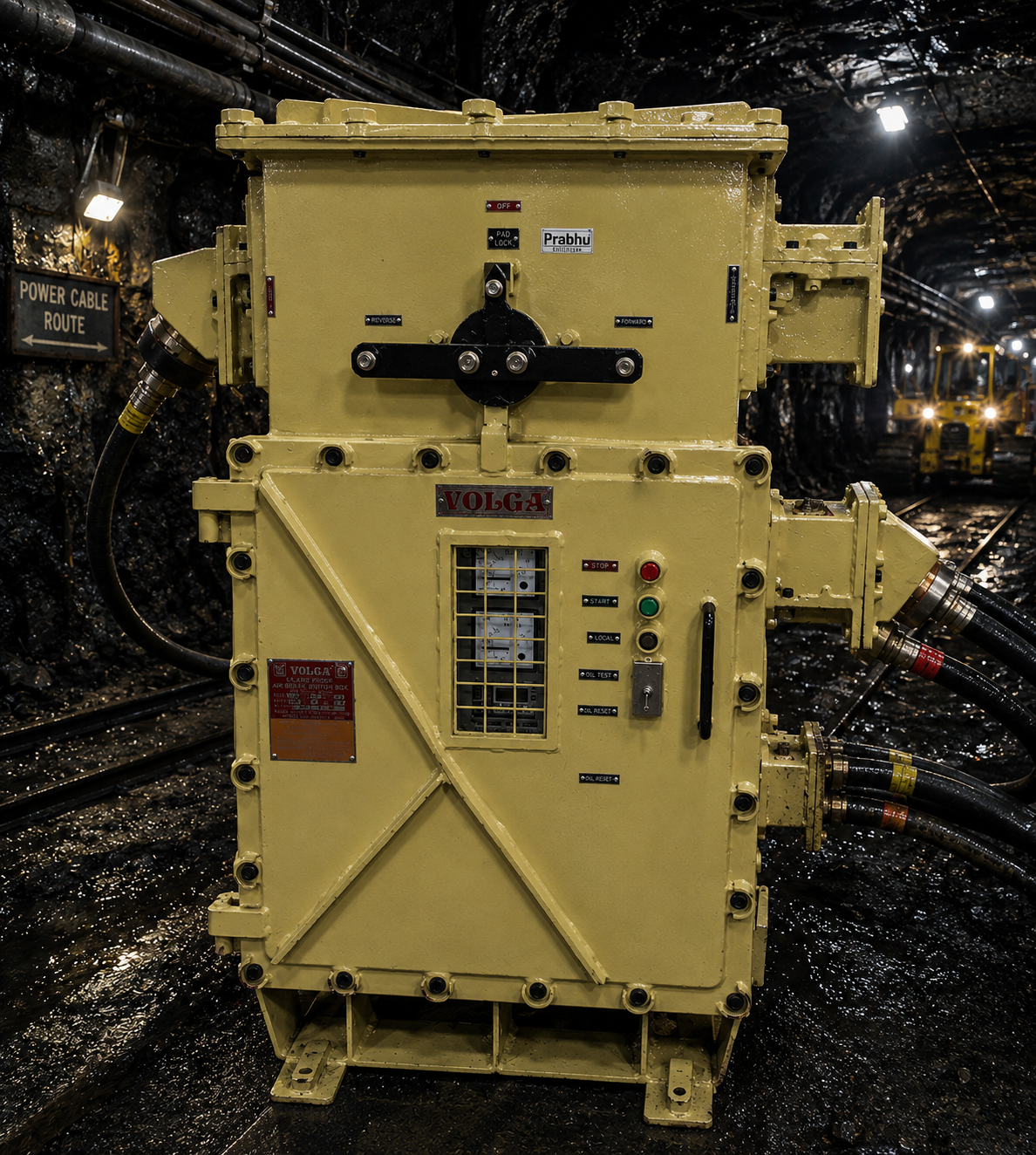

FLP GATE END BOX RATED UPTO 400AMPS, VOLTAGE UPTO 1140V
Designed for protection of underground machines and powering SDL, LHD etc.
- Skid mounted enclosures fabricated from thick steel plate confirming to latest IS/IEC 60079.
- Different compartments.
- Mechanically and electrically interlocked protection.
- Cable termination and sealing boxes fitted with cable glands.
- Suitable rated plug & socket.
- Suitable rated measurement meters.
- Single unit gate end box with one outgoing plug and socket upto 400 amps.
- Application: Coal Mines.

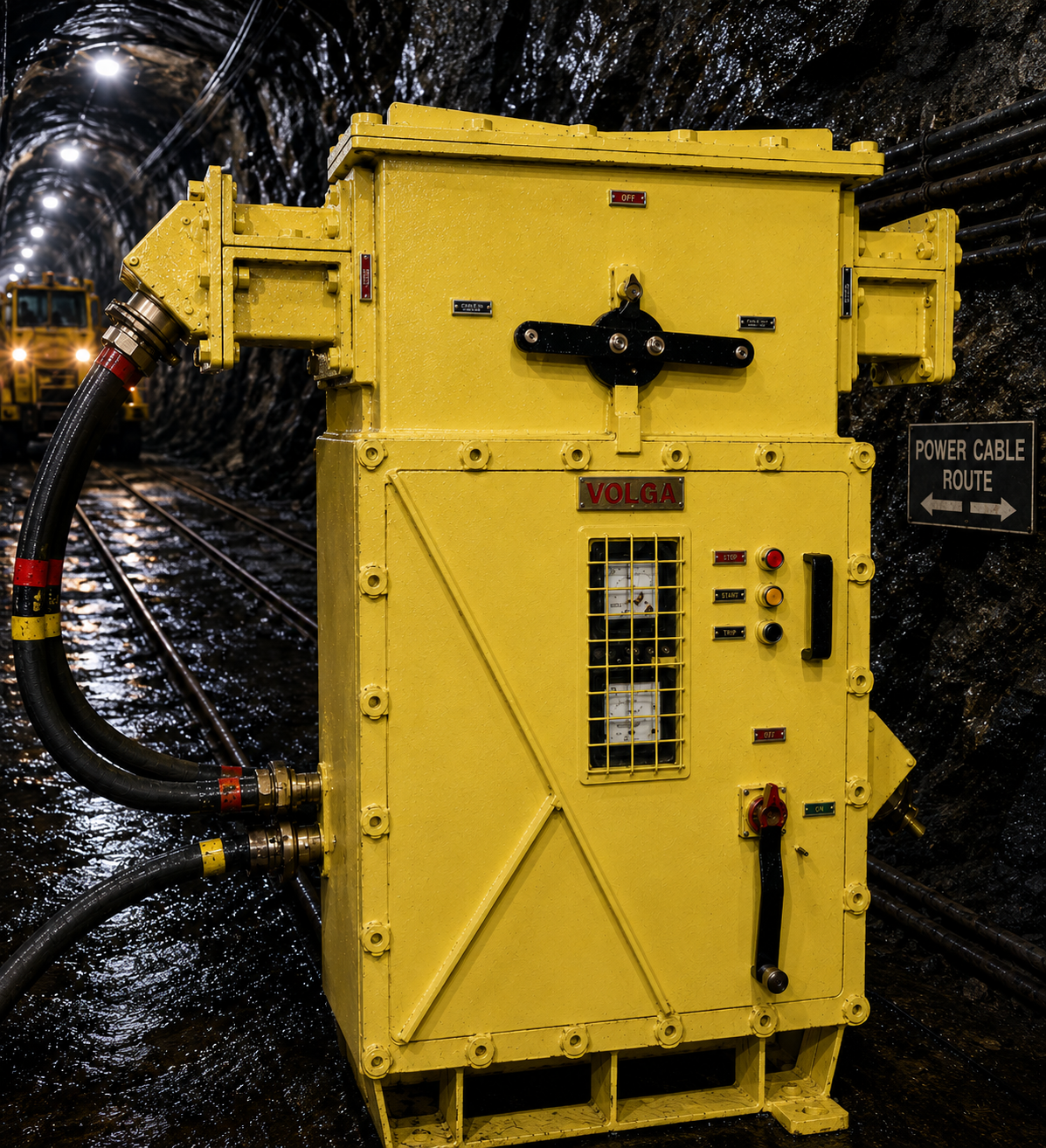

FLP AIR CIRCUIT BREAKER PANEL RATED UPTO 400AMPS, VOLTAGE UPTO 1140V
Designed to protect electrical circuits and related equipments from overload and short circuit over current.
- Skid mounted flameproof enclosure fabricated from thick steel plate conforming to latest IS/IEC 60079.
- Two compartments.
- Suitable rated busbar & isolator.
- Suitable rated Triple pole MCCB.
- Choice of protection.
- Push Buttons for Stop etc. shall be provided.
- Suitably scaled measurement meters.
- Cable termination and sealing boxes with glands shall be provided.

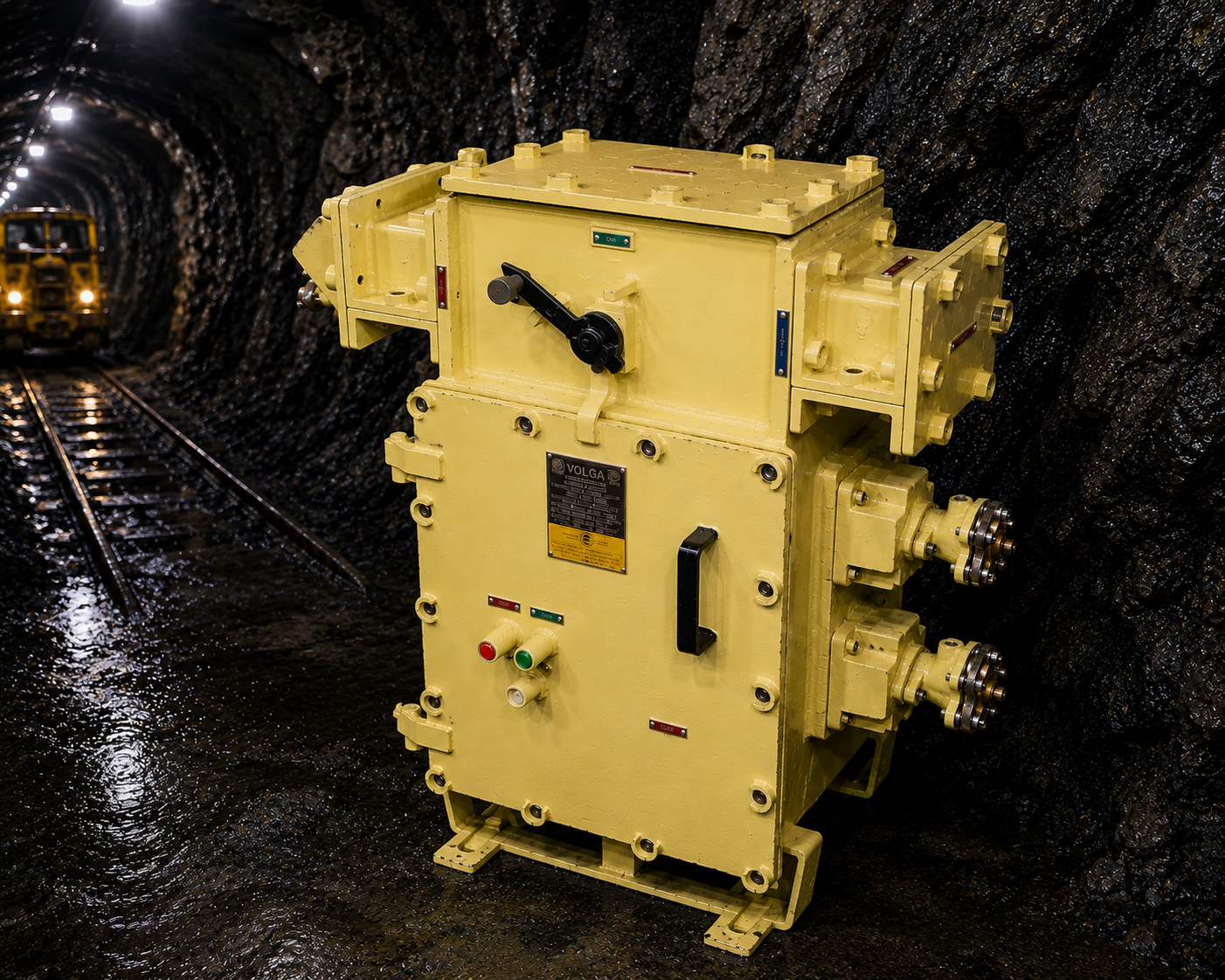

FLP LIGHTING TRANSFORMER UPTO 10KVA, VOLTAGE UPTO 1140V
Specially designed to provide power for a variety of devices.
- Skid mounted flameproof enclosure fabricated from thick steel plate conforming to latest IS/IEC 60079.
- Two compartments.
- Suitable rated busbar & isolator.
- Suitable rate transformer.
- Choice of protection.
- Push Buttons for Stop etc. shall be provided.
- Suitably scaled measurement meters.
- Cable termination and sealing boxes with glands shall be provided.

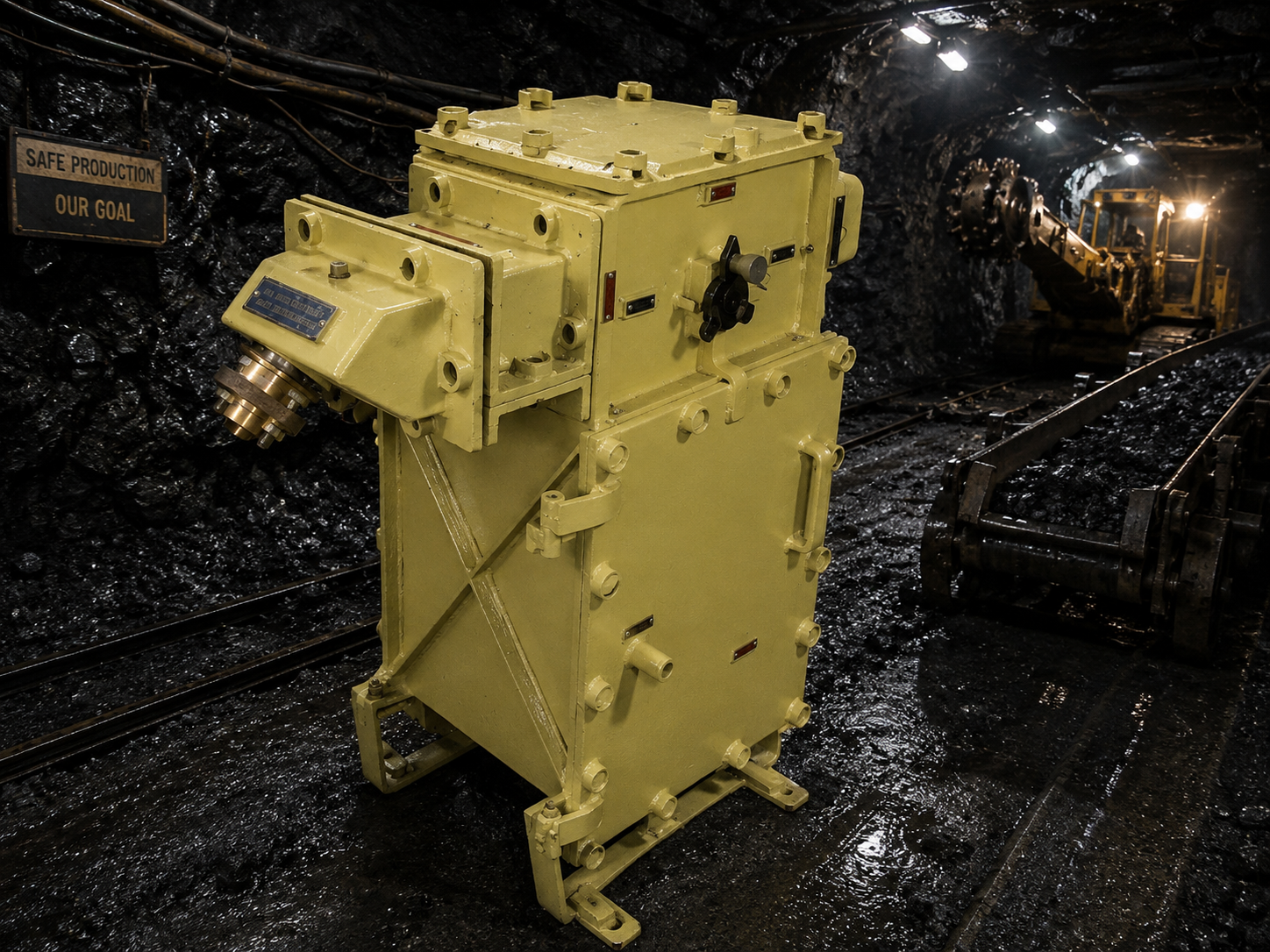

FLP DRILL CONTROL PANEL RATED UPTO 2.5KVA, 550/110V
Designed for safe and efficient operation of underground drilling equipment.
- Flameproof enclosure.
- Steel structure.
- Properly earthed.
- Enamel painted.
- Intrinsically safe.

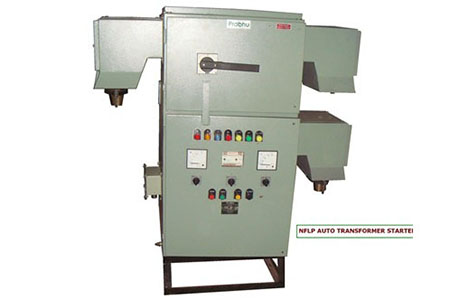

FLP AUTO TRANSFORMER STARTER UPTO 400AMPS, VOLTAGE UPTO 6.6KV
Specially designed to reduce starting current.
- Skid mounted enclosures fabricated from thick steel plate conforming to latest IS/IEC 60079.
- Different compartments.
- Mechanically and electrically interlocked isolator.
- Cable termination and sealing boxes fitted with cable glands.
- Suitable rate auto transformer with tapping.
- Choice of protections.
- Suitable scaled measurement meters.
- Suitably scaled ammeter and voltmeter switch with indications on/off, trip on the front cover.

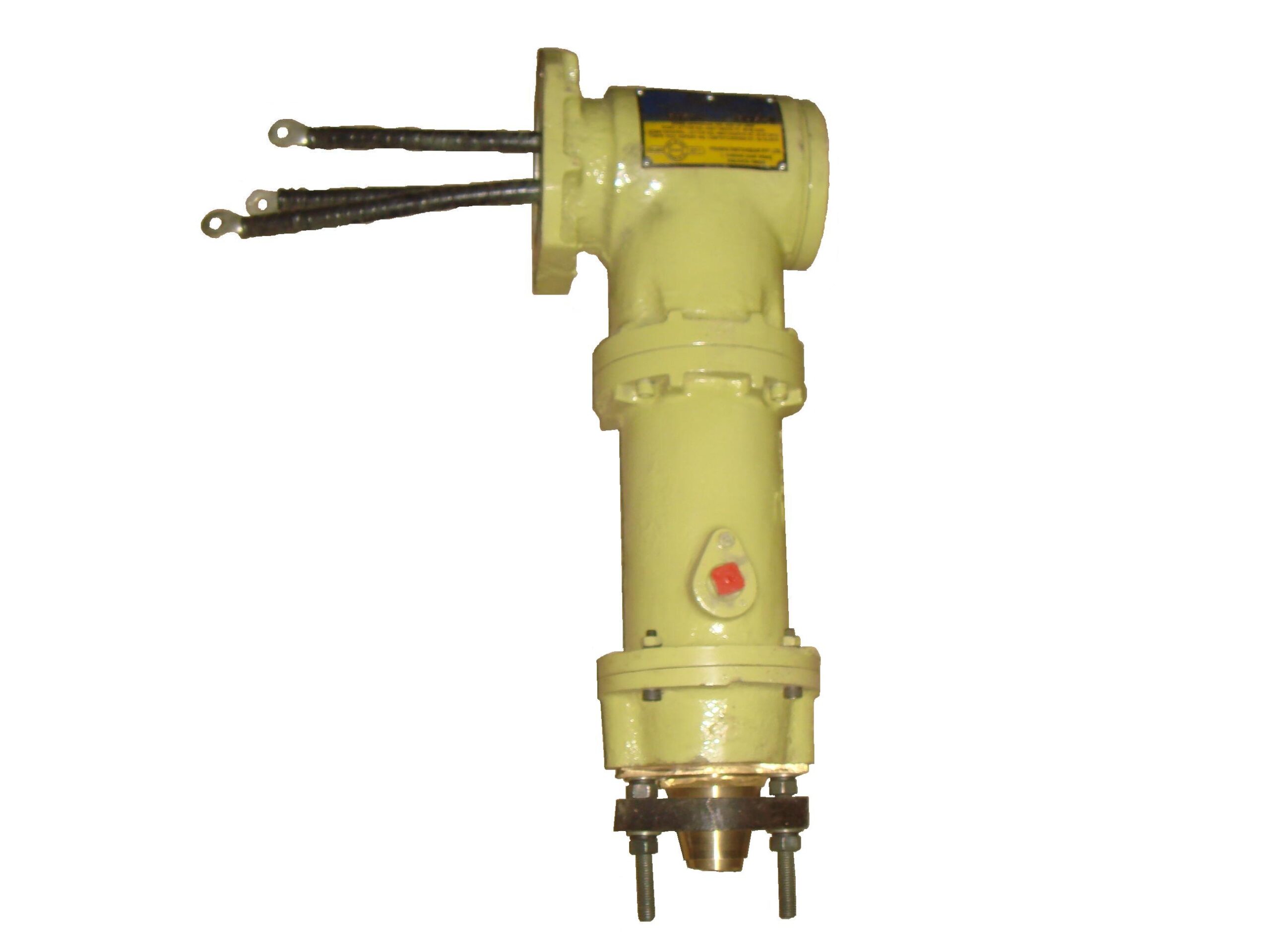

FLP PLUG & SOCKETS / COUPLERS ADAPTOR
DGMS approved plug and sockets/couplers and adaptors for fixing of trailing/armoured cables.
- DGMS Approved components.
- Robust construction for underground safety.
- Compatible with trailing and armoured cables.
- Easy locking and coupling mechanism.

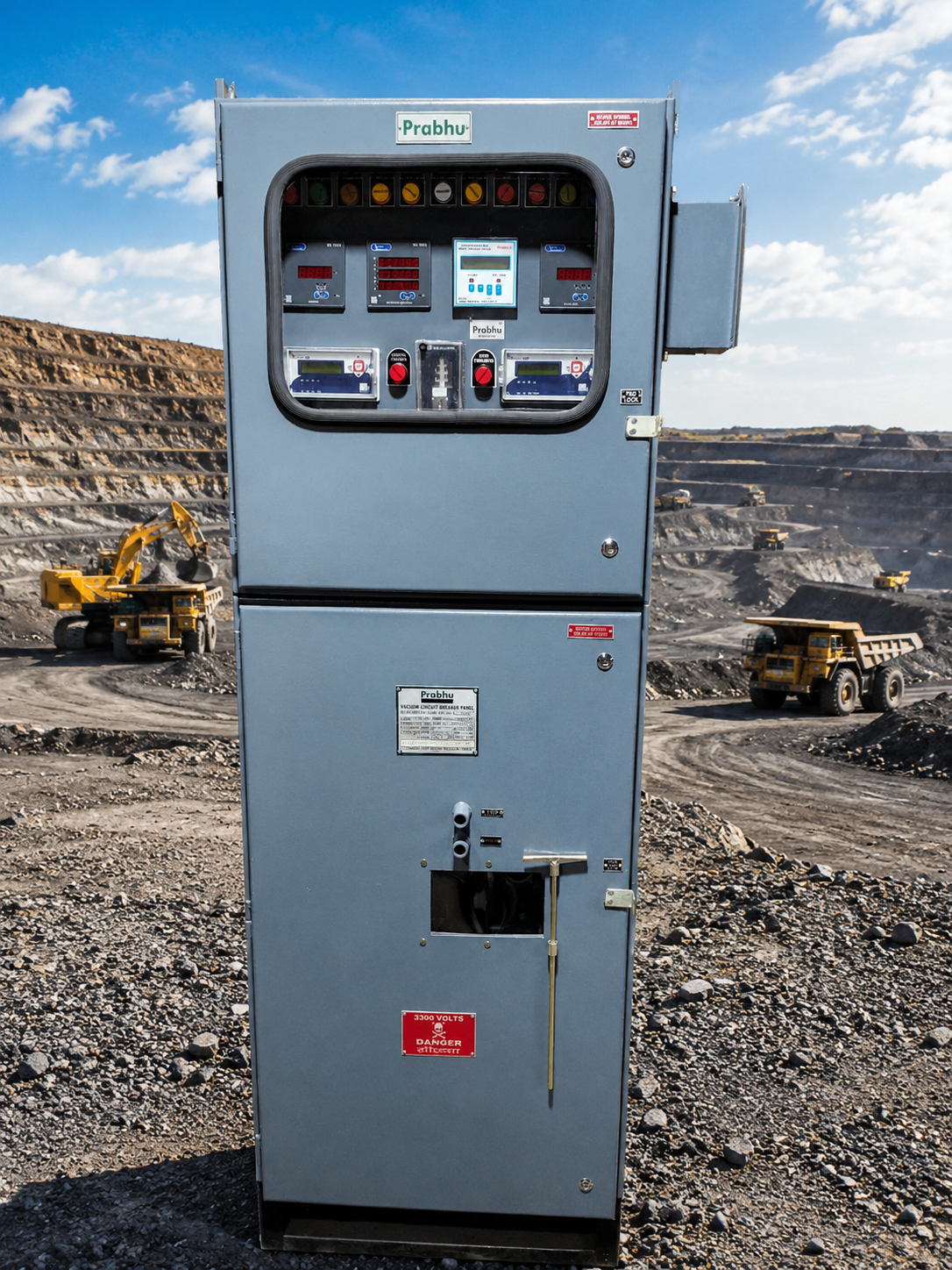

VACUUM CIRCUIT BREAKER PANEL RATED UPTO 12kV, 1250 AMPS, 26.3kA
Prabhu Make NFLP VCB Panel can be supplied upto 12kV, 1250A, 26.3kA with Prabhu make type tested VCB from NABL accredited lab.
- Floor mounted, free standing dust & vermin proof enclosures.
- Single front and fully draw out breaker.
- The Panel can be connected upto one machine or multiple panels can be inter trunked for multiple outgoings.
- Different compartments for Metering and Control and Circuit Breaker.
- IDMTL relay, Master trip relay etc protections as per customer choice.
- Power wiring brought out to the terminals for simple installation.
- Electrical and mechanical interlock of VCB for enhanced safety.

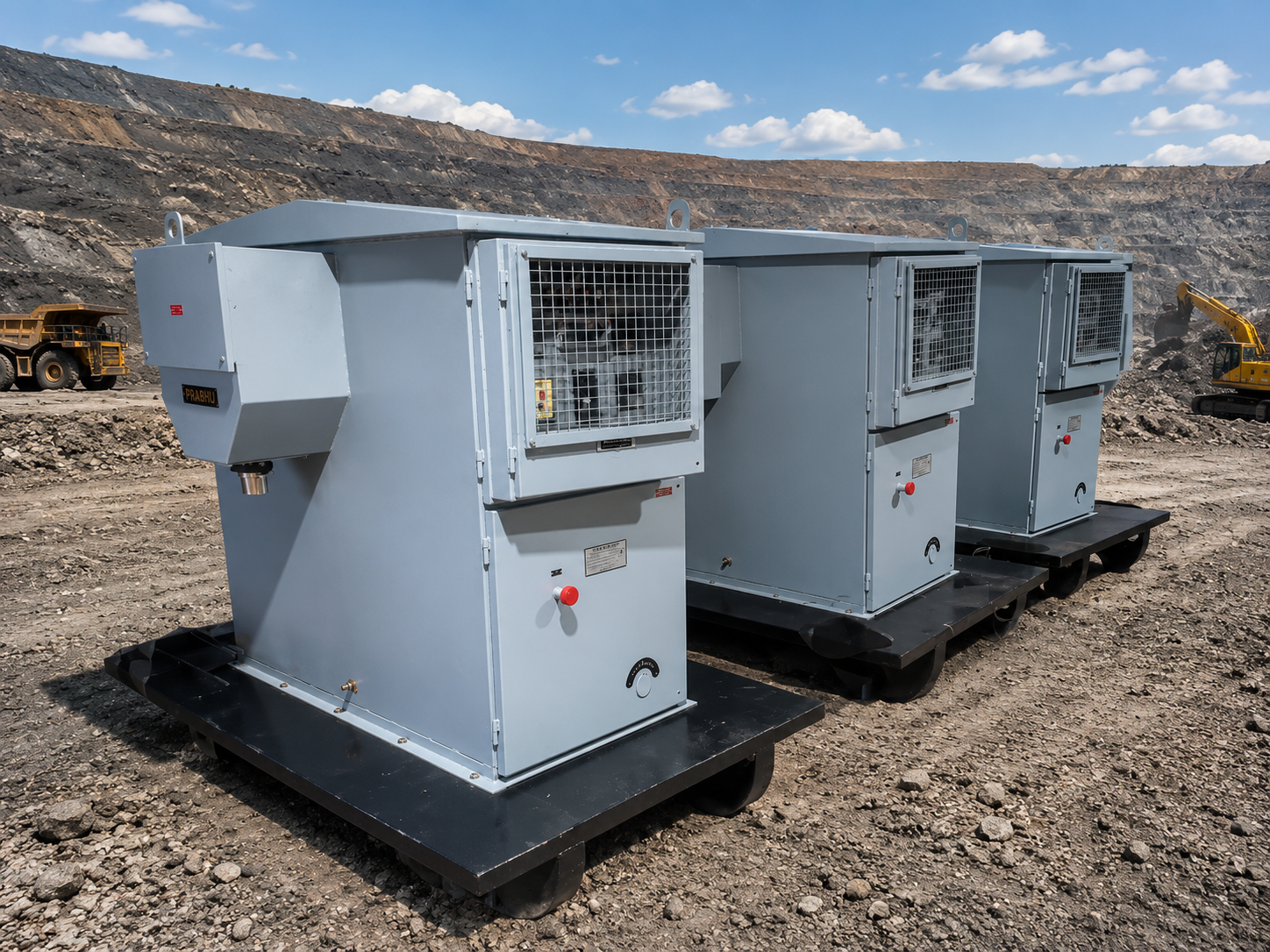

FIELD SWITCH
Prabhu make NFLP field is manufactured for effectively distributing power for various loads like drill machines, shovels, pumps etc suitable for dust laden and humid atmosphere.
- Range upto 11kV 1250A.
- Two cubicles or three cubicles.
- Outgoing plug & socket.
- Off load or On Load isolator.
- Castle type interlock.
- Hinged type door with wire mesh.
- Lifting hooks and skid base for transportation.
- Outdoor type with canopy provided for rain protection.
- 5 or 6 pin plug & socket.

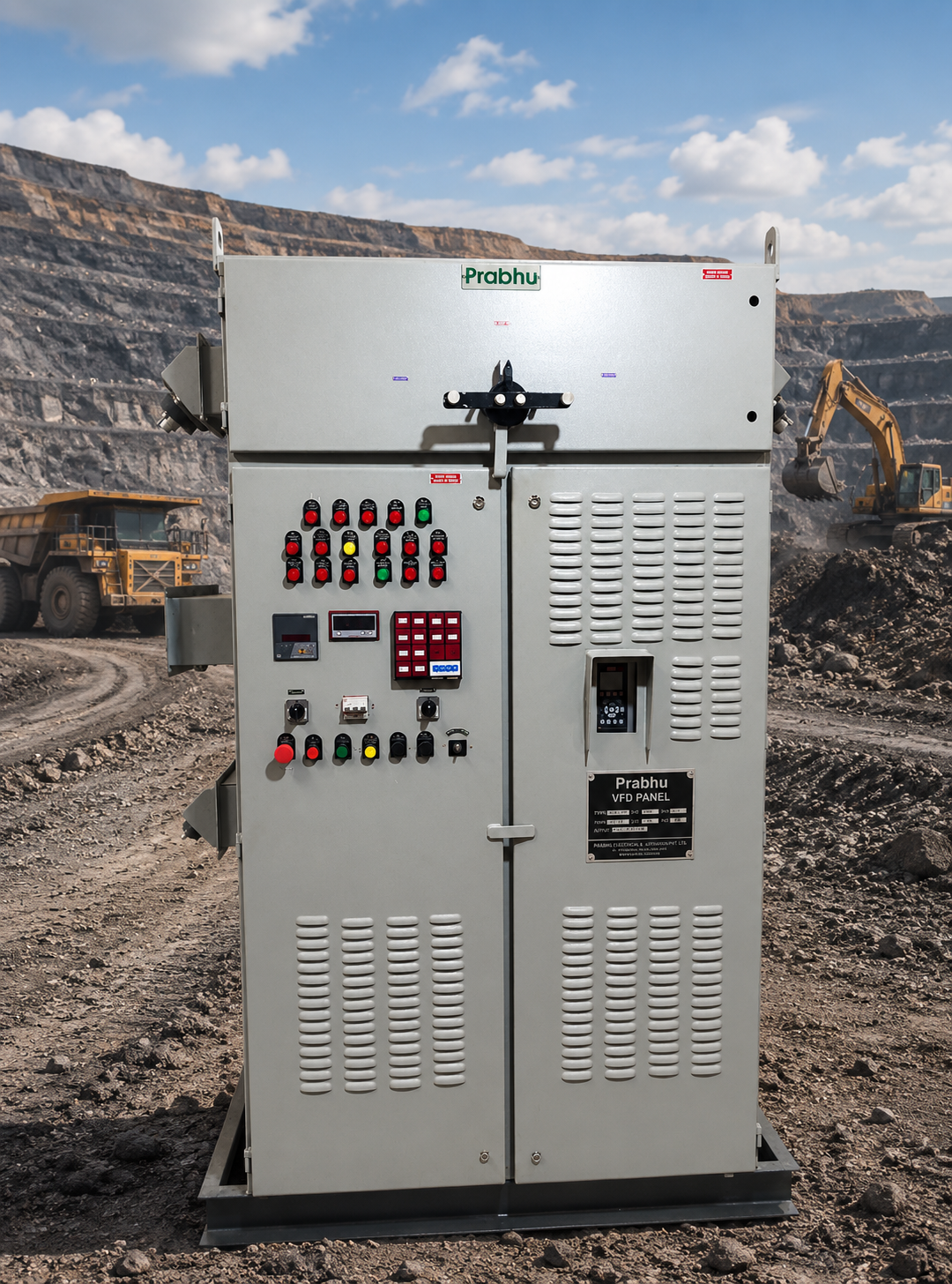

VFD PANEL
Specially designed for controlling & varying speed of motors.
- Range upto 550V, amps as per customer choice.
- Single or Two in one panel.
- DOL by pass arrangement.
- Separate remote control panel.
- Alarm annunciator with hooter.
- In built thruster brake arrangement.
- Exhaust fan venting and POT for speed control.

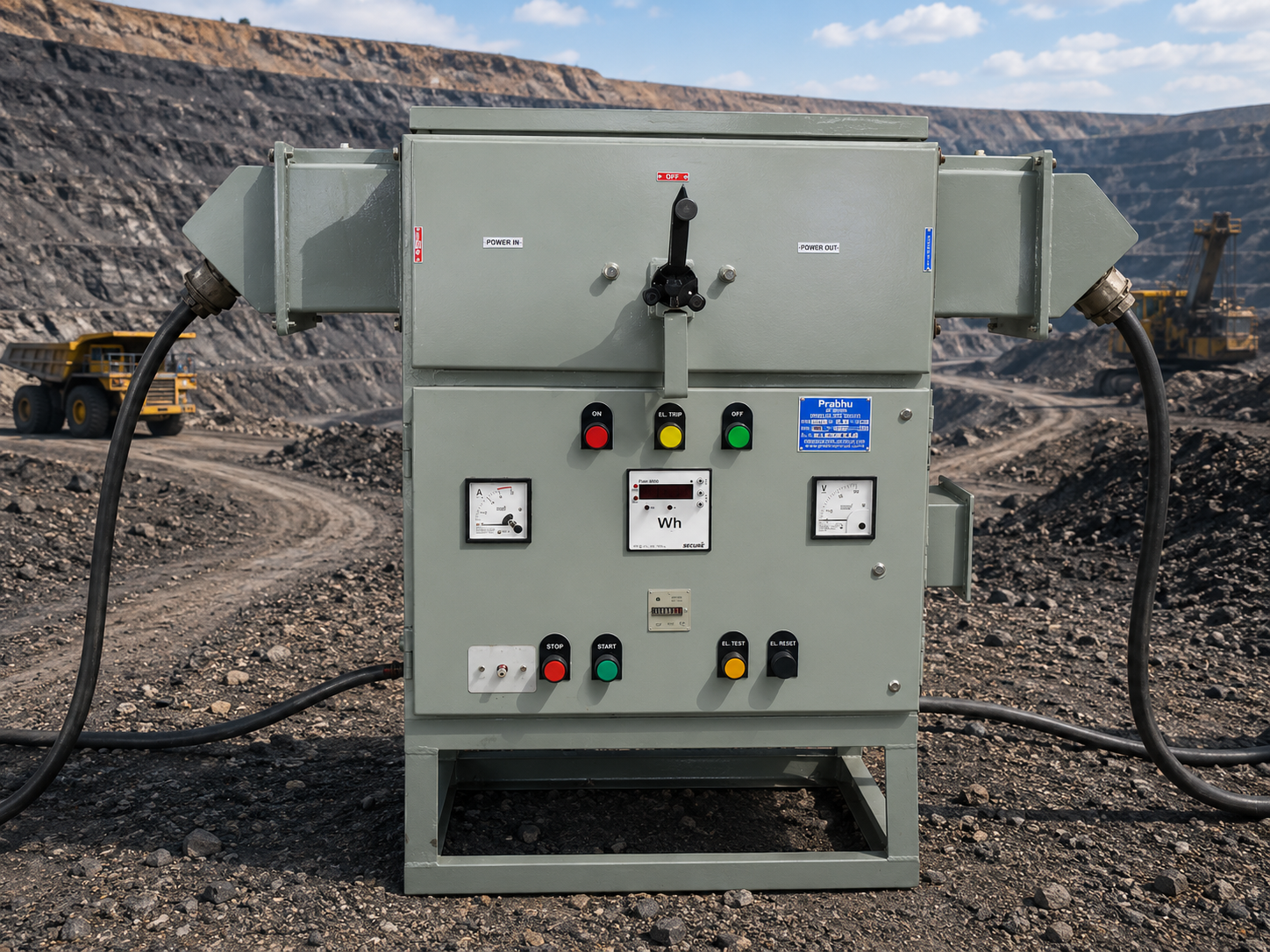

NFLP L.T. STARTERS RATED UPTO 600AMPS, 550V
Prabhu make NFLP LT starters are suitable for open cast mines suitable for operating conveyors belts, pumps, ventilation fan and many more.
- Skid mounted enclosures.
- Fitted with busbar, isolator, contactor, protective relays.
- Mining type boxes and cable glands provided.
- Durable construction for harsh outdoor environments.

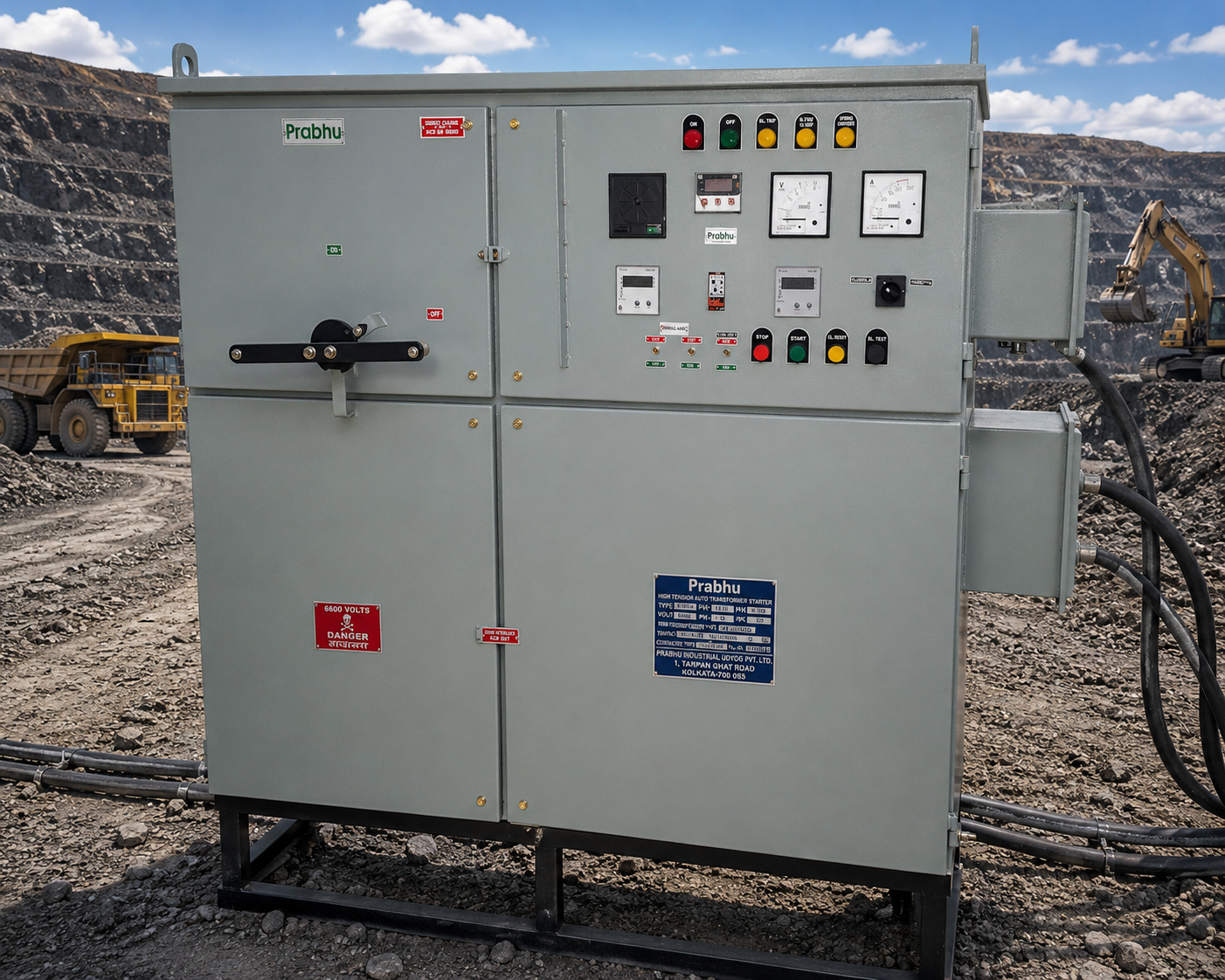

NFLP H.T. STARTERS UPTO 6.6KV, 400 AMPS
Prabhu make NFLP HT starters are suitable for open cast mines suitable for operating conveyors belts, pumps, ventilation fan and many more.
- Supplied as individual unit or in multi bank form as per customer choice.
- Mining type cable box provided.
- Terminal box provided.
- Suitable for high capacity industrial motor applications.

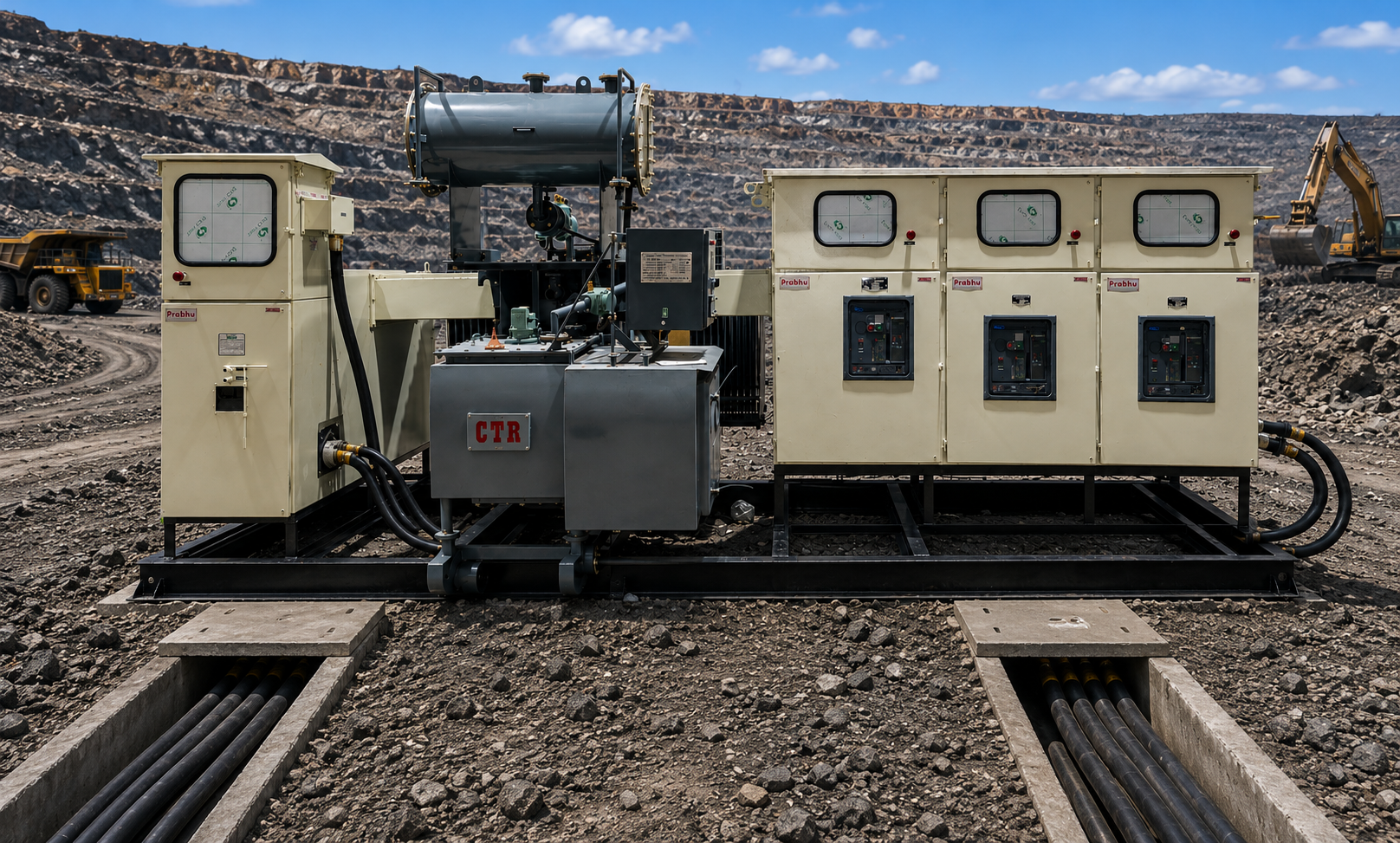

UNITISED SUB STATION / TSS / PSS
Manufactured for safety and distribution of power in open cast operations.
- Primary upto 11kV - Single Incomer or Multiple as per customer choice.
- Step down Oil cooled or dry type transformer as per customer choice.
- Secondary Multiple ACB/MCCB distribution as per customer choice.
- Skid mounted on a common platform.

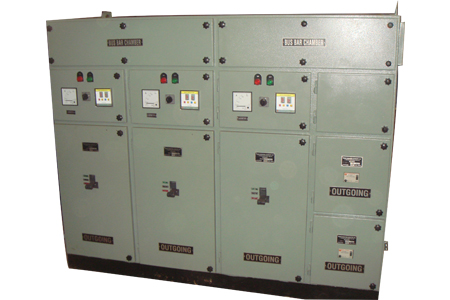

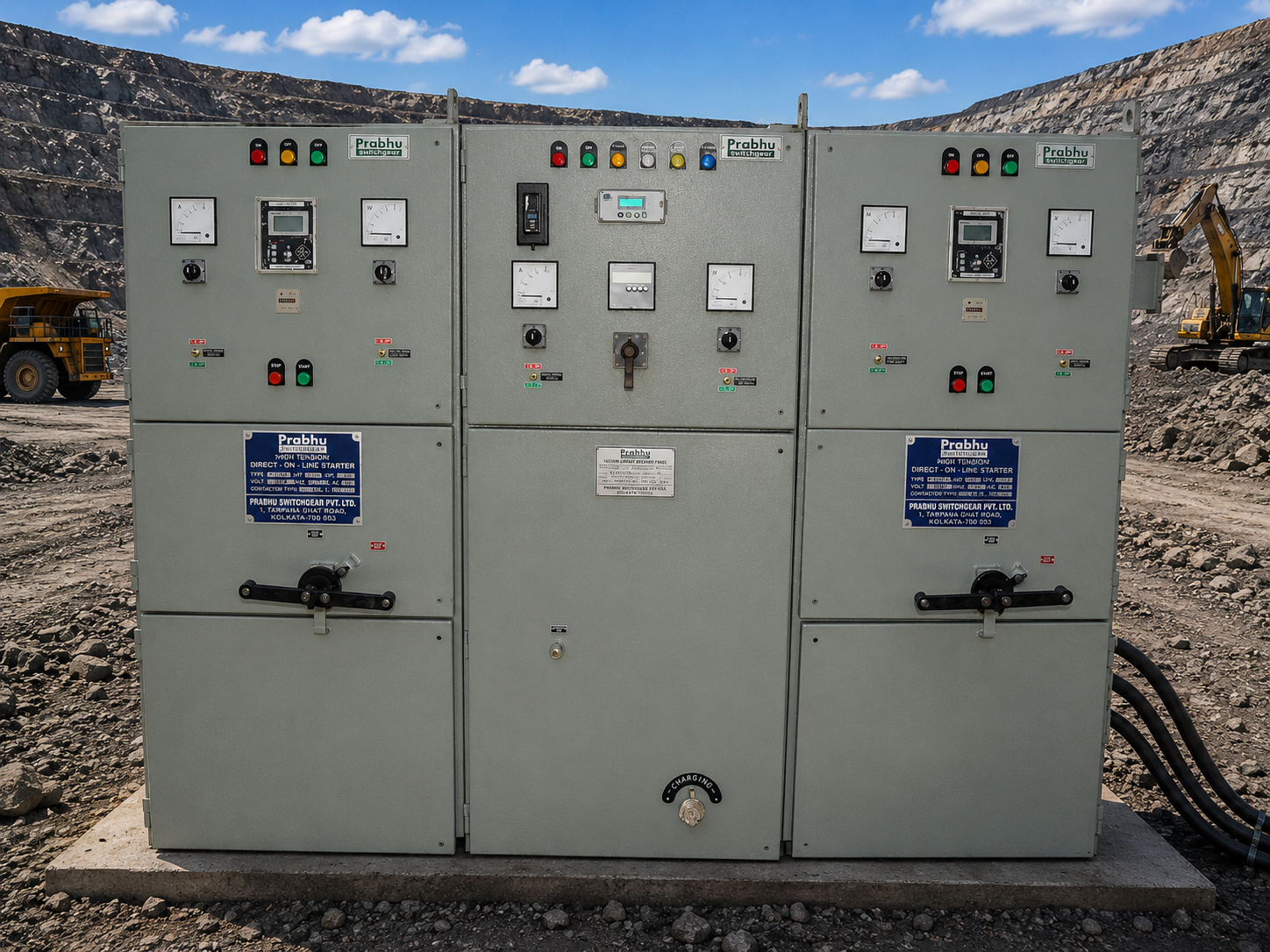

PCC / MCC / DISTRIBUTION PANEL
The panels have been designed for accurate monitoring, control & protection of incoming thereby ensuring reliability in the chain of power system.
- Range upto 550V, amps as per customer choice.
- Available in single door or double door.
- IP 54/55 degree protection.
- Compact design.
- Customised single or multi panel formation.
- Safety of humans against electrical shock.
- Protection of electrical machines.

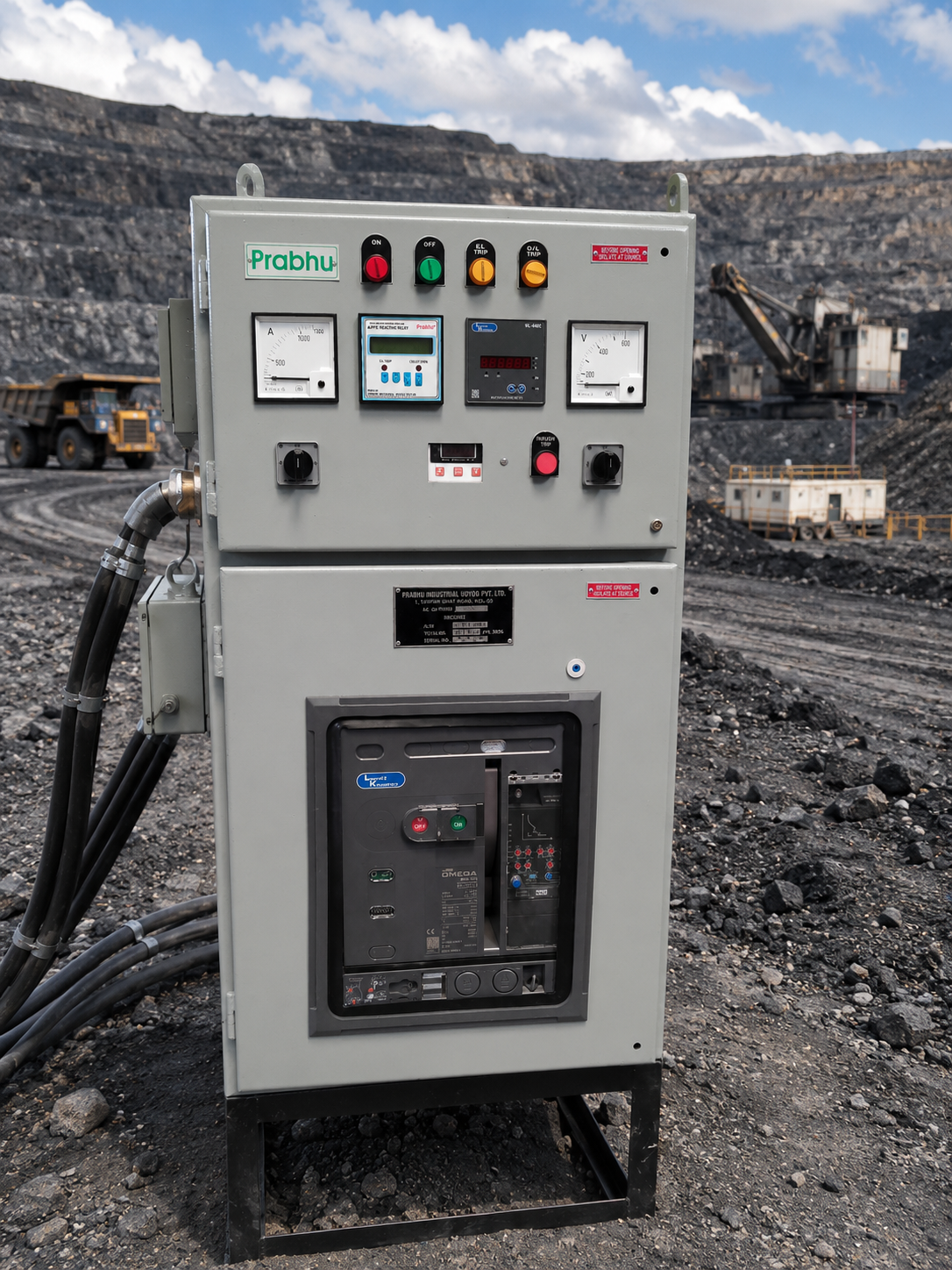

NFLP AIR CIRCUIT BREAKER PANELS
The NFLP ACB Panel has been developed for use in surface areas offering high breaking capacity to protect low voltages application in high power circuits.
- Upto 550Volts, amps as per customer choice.
- Can be used to connect one machine.
- Can be coupled together as a multi panel formation.
- Reliable performance under high power demands.

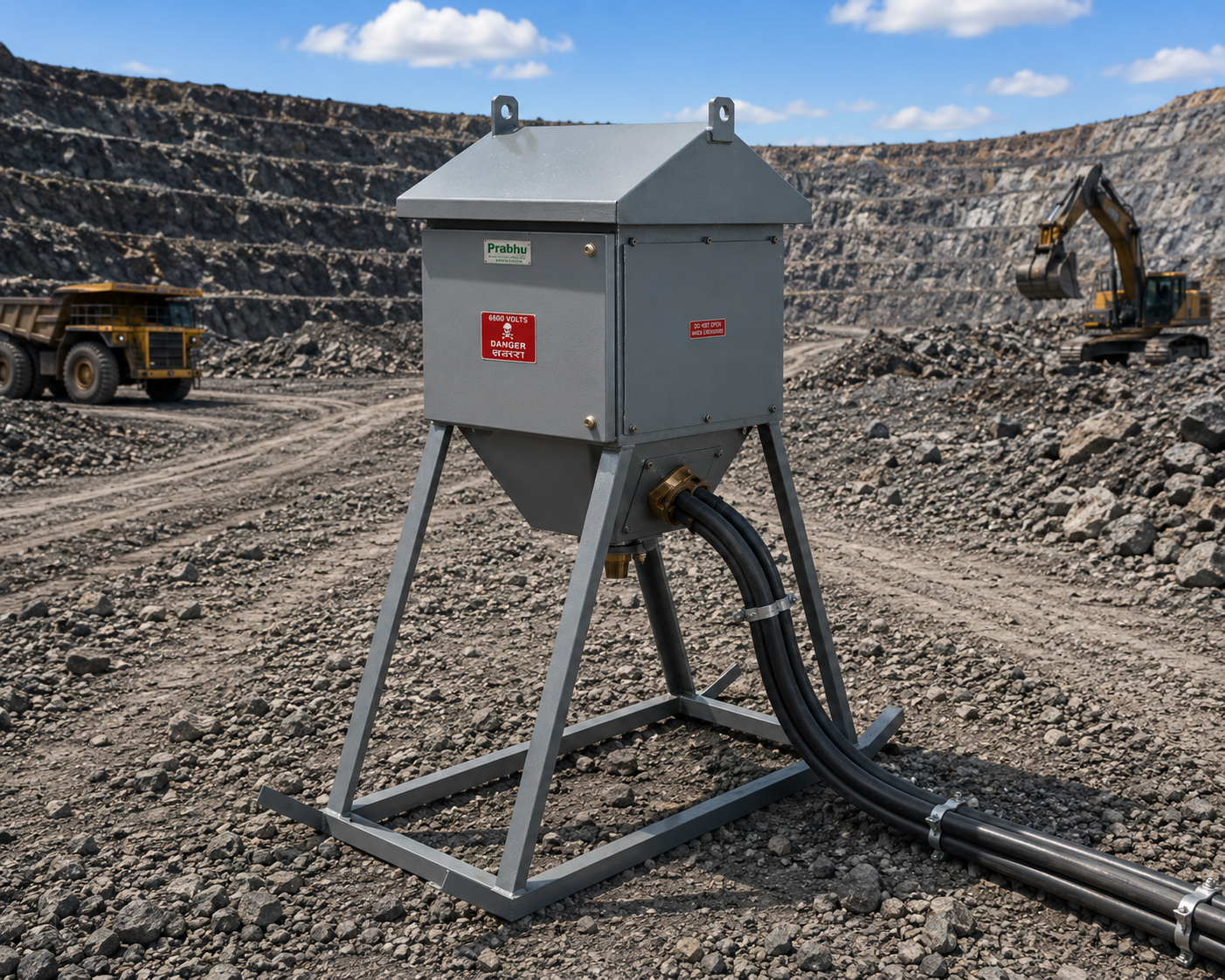

JUNCTION BOX UPTO 11KV
NFLP cable junction box upto 11KV. The Junction box is designed for concealing electrical junctions and providing protection to wiring at various junction points.
- Indoor type, dust and vermin proof floor mounting type.
- Square design.
- Safety of humans against electrical shock.
- Easy handling and installation.
- Protection of electrical machines.
- Canopy type with lifting hooks.
- Safe and reliable with high insulation property and high intensity.

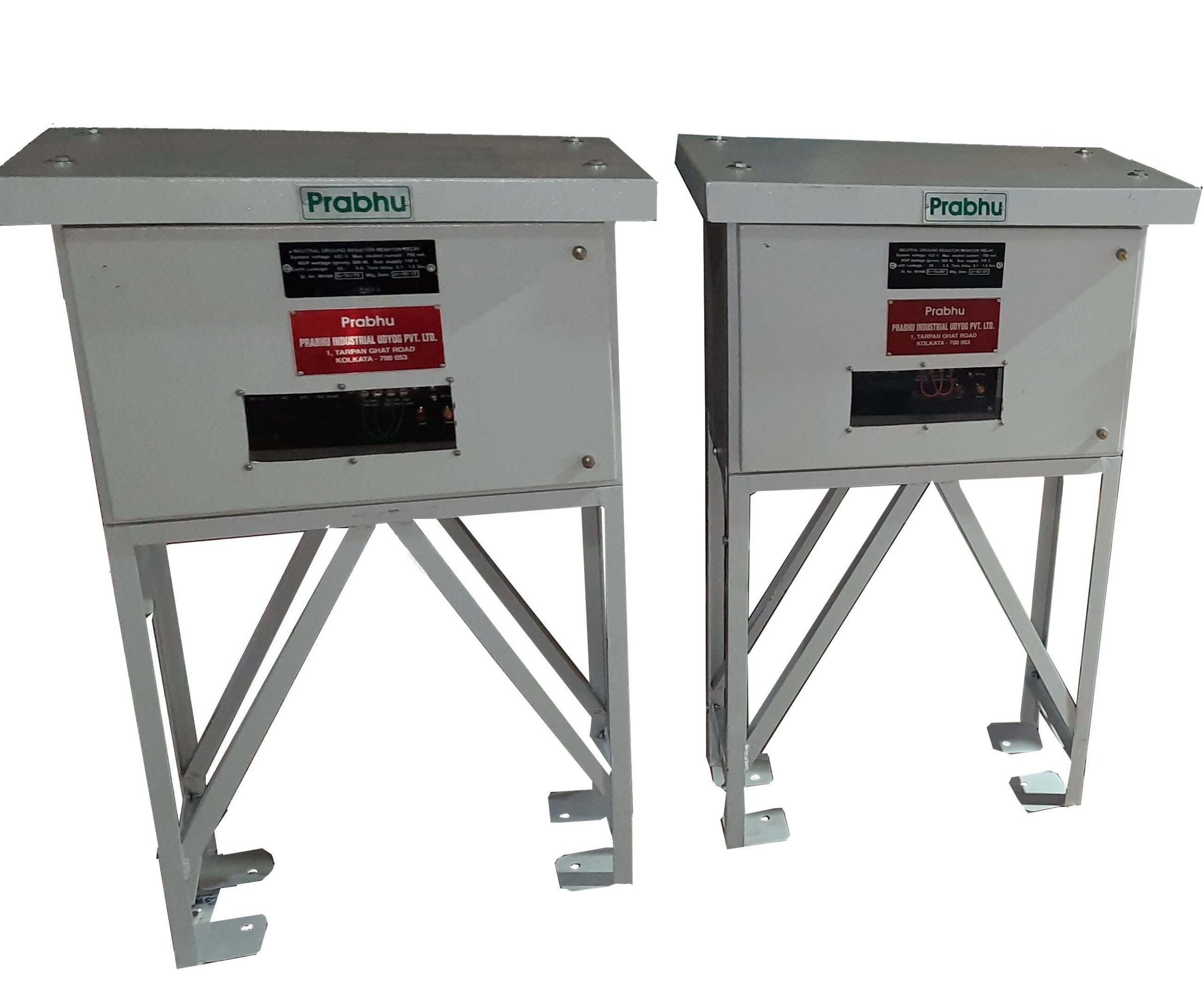

COMBINED NGR-E/F- NEUTRAL MONITORING SYSTEM
Manufactured for limiting ground fault currents to safe levels so that all the electrical equipment in a power system is protected.
- Available for systems upto 6.6kV, 10amps.
- Safety of personnel and extended life of equipment by limiting damage.
- Prevention of additional faults and high service reliability.
- Stainless steel wire wound resistor, coated with high temperature non-flammable design.
- Solid state neutral earth leakage relay with variable current and time settings with indications and push button.
- Solid state Fail safe Relay with indications.

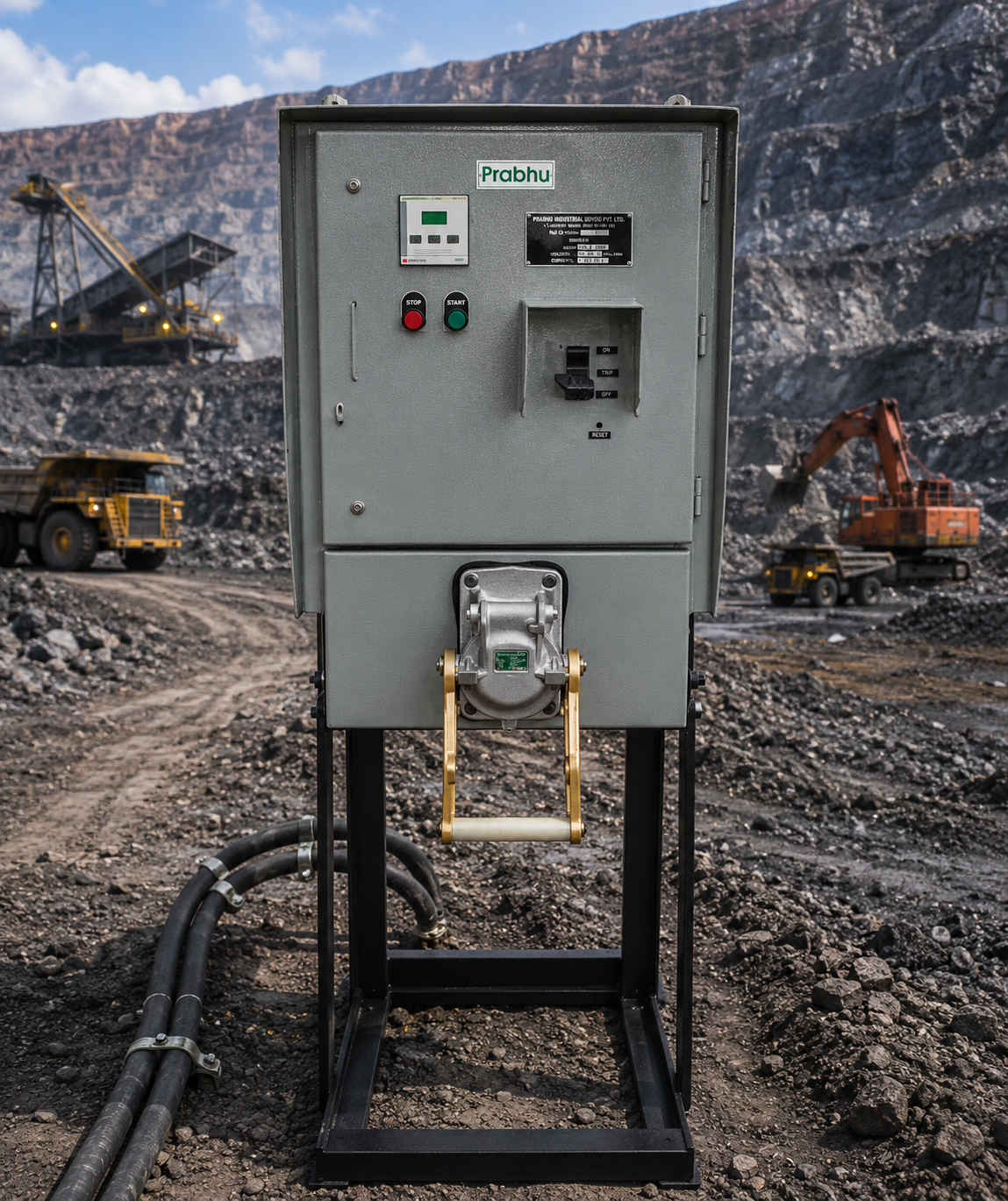

GATE END BOX (NFLP GEB)
Transportable, free standing and controlling gate end box designed for surface and open cast applications.
- Upto 420Amps, 550V.
- Can be used to connect one or two motors.
- GEB is transportable, free standing and controlling.
- Restrained type CI plug & socket on outgoing side or Aluminium push pull type plug & socket (for metal mines).

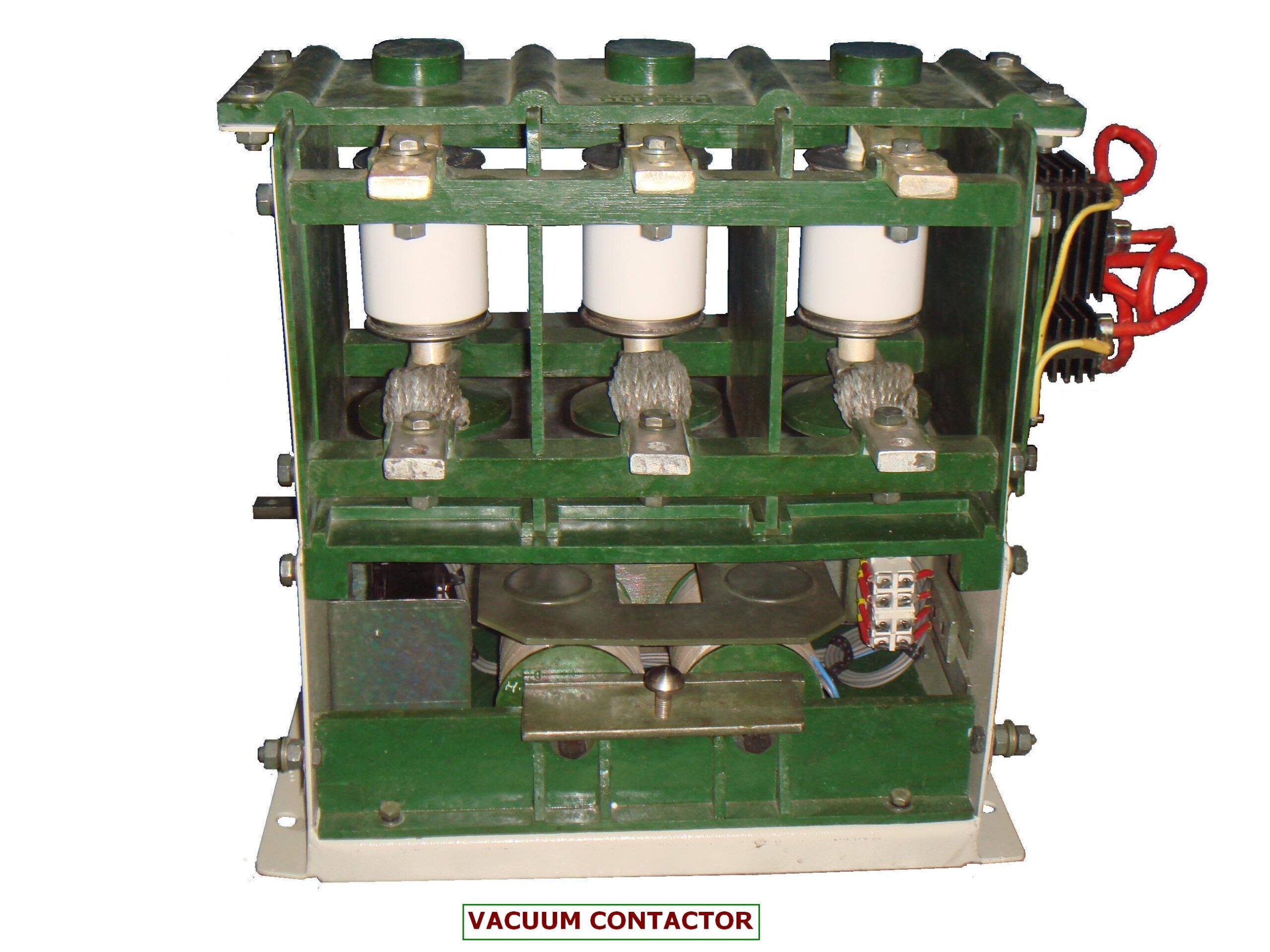

VACUUM CONTACTOR
Designed for convenience, safety and reliability.
- Range upto 7.2kV, 400A.
- AC-4 duty contactor.
- 1 million mechanical and electrical life operation.
- Type tested with compact design and light weight.
- Excellent dielectric recovery allowing high switching frequency.
- Pilot control fitted on board.
- Chopping current low with high interrupting ability.
- Magnetically held mechanism with economised DC coil operation.
- Minimal maintenance required.

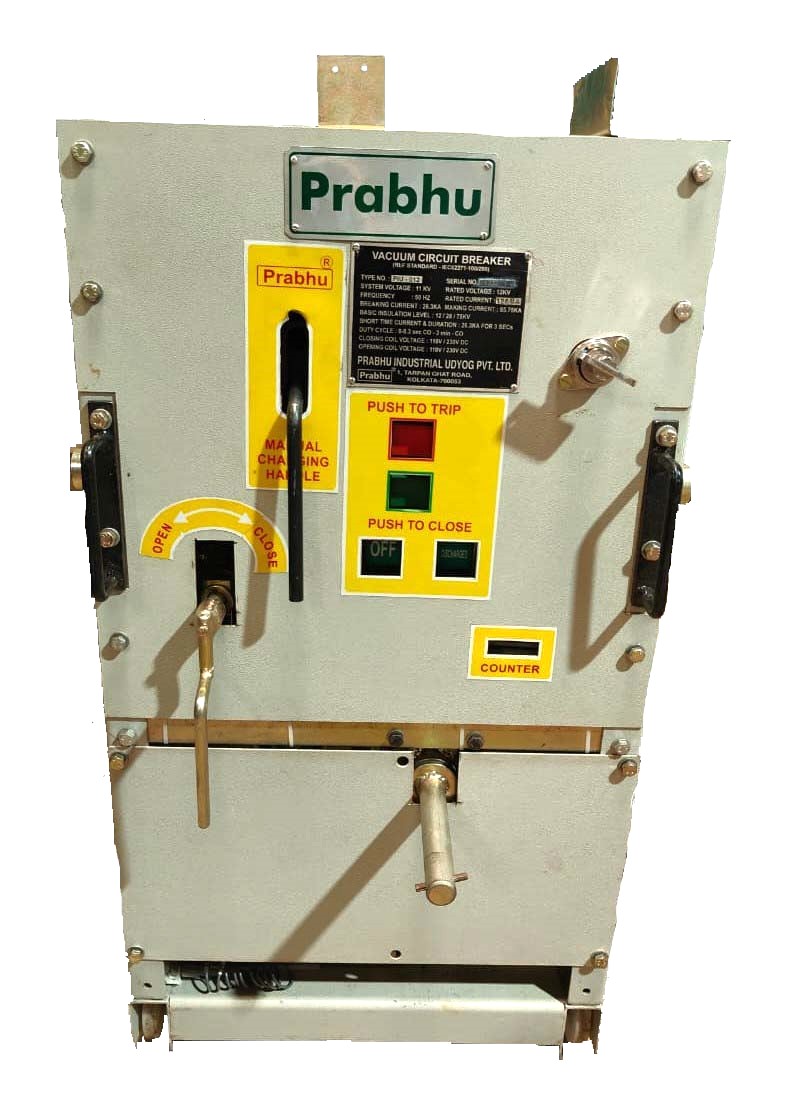

VACUUM CIRCUIT BREAKER
Withdrawable type circuit breakers rated upto 7.2kV and 12kV specially designed to break the circuit so that energy cannot continue flowing, preventing fires and technical fault hazards.
- Upto 630A, 7.2kV, 13.1kA and Upto 1250A, 12kV, 26.3kA.
- Type tested breaker with short circuit withstand for 3 secs.
- Making current of 32.75kA for 7.2kV & 62.5kA for 12kV breaker.
- Insulation level of 20kV rms/60kVp for 7.2kV breaker and 28kV rms/75kVp for 12kV breaker.
- Components and assemblies so arranged for reliability and stability for breaker.
- Protection against short circuit and overload.

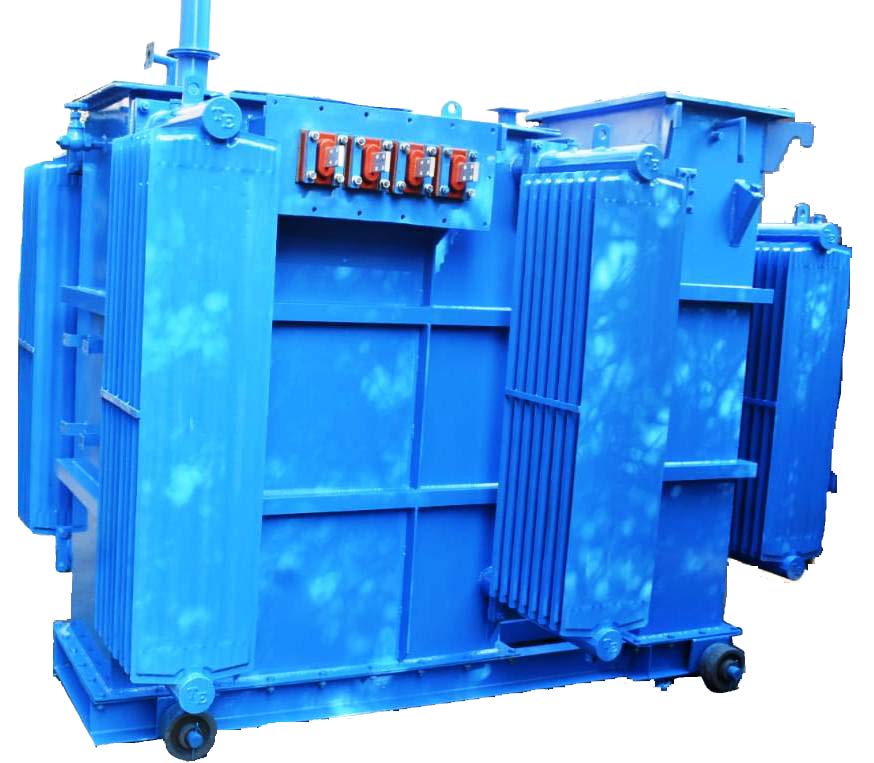

NON SEALED POWER TRANSFORMER (ONAN) UPTO 33kV
Heavy-duty power transformers designed to meet custom industrial and site requirements.
- Product range: upto 5MVA upto 33kV class.
- Power transformers of range 33/11kV, 33/22kV, 33/3.3kV, 11/6.6kV etc.
- Rating customized as per customer requirement.
NON SEALED DISTRIBUTION TRANSFORMER (ONAN) UPTO 33kV
High-efficiency distribution transformers conforming to standard power specifications.
- Distribution transformer as per IS 1180: Part 1 upto 2500kVA.
- Primary voltage of 3.3kV, 6.6kV, 11kV, 22kV & 33kV.
- Secondary voltage of 433V or 415V.
- Rating as per customer requirement.

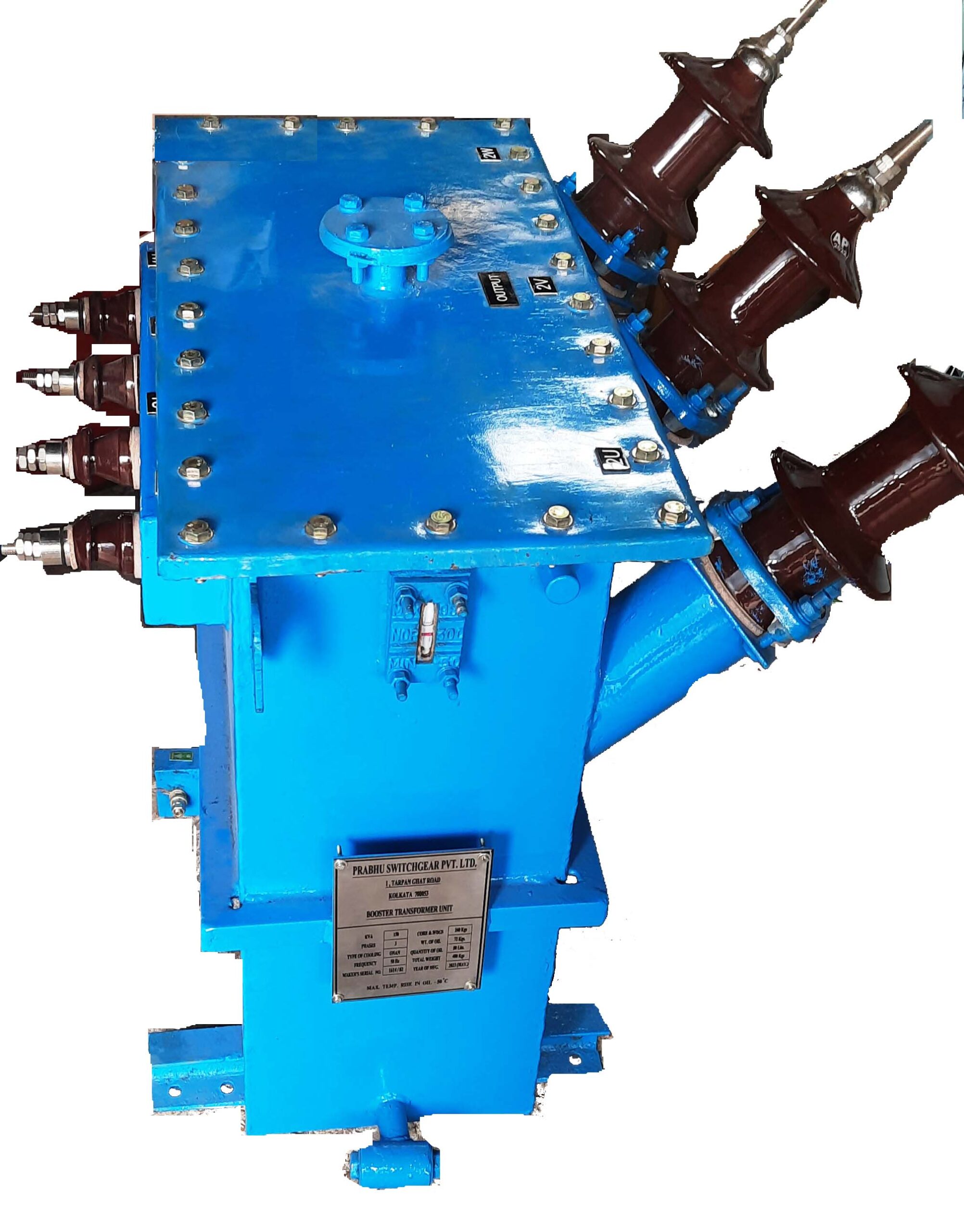

BOOSTER TRANSFORMER
Booster transformer designed to boost voltage and compensate for voltage drops over long transmission lines.
- Compensates for line losses far away from power sources.
- Custom rating as per customer requirement.
- Durable construction for reliable outdoor duty.

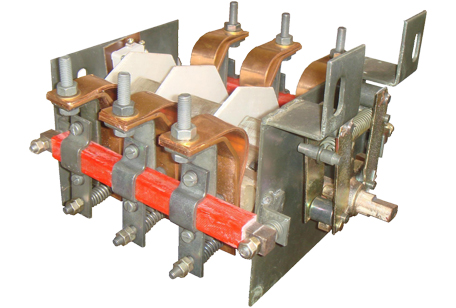

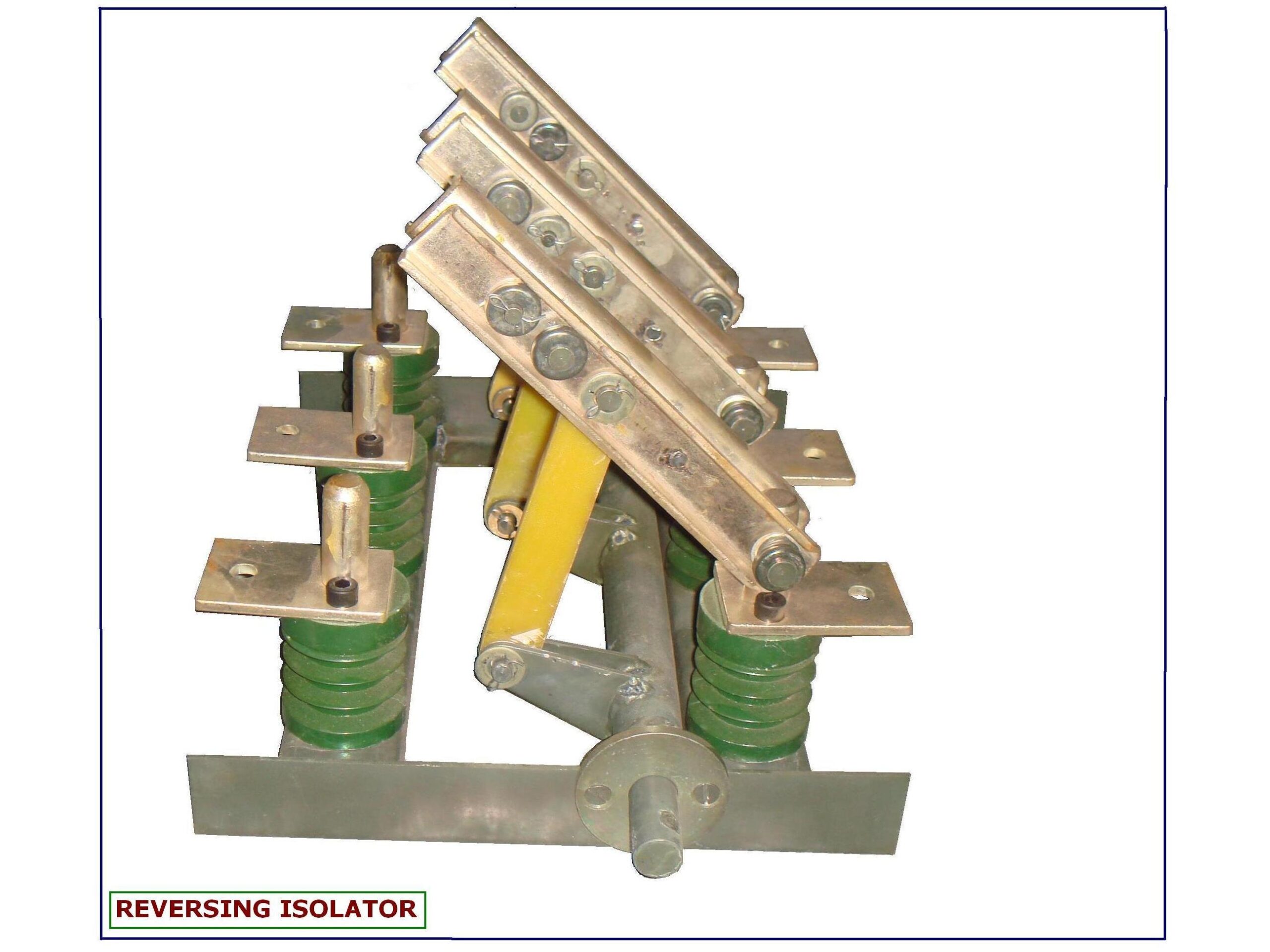

ISOLATORS
High performance isolators designed for reliable electrical isolation across systems.
- Different ratings of HT & LT isolators available.
- Robust construction for safe switching operations.
- Custom configuration as per operational load requirements.
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Underground Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Open Cast Mining
Other Products
Other Products
Other Products
Other Products
Other Products
Other Products
Underground Mining
Open Cast Mining
Other Products
